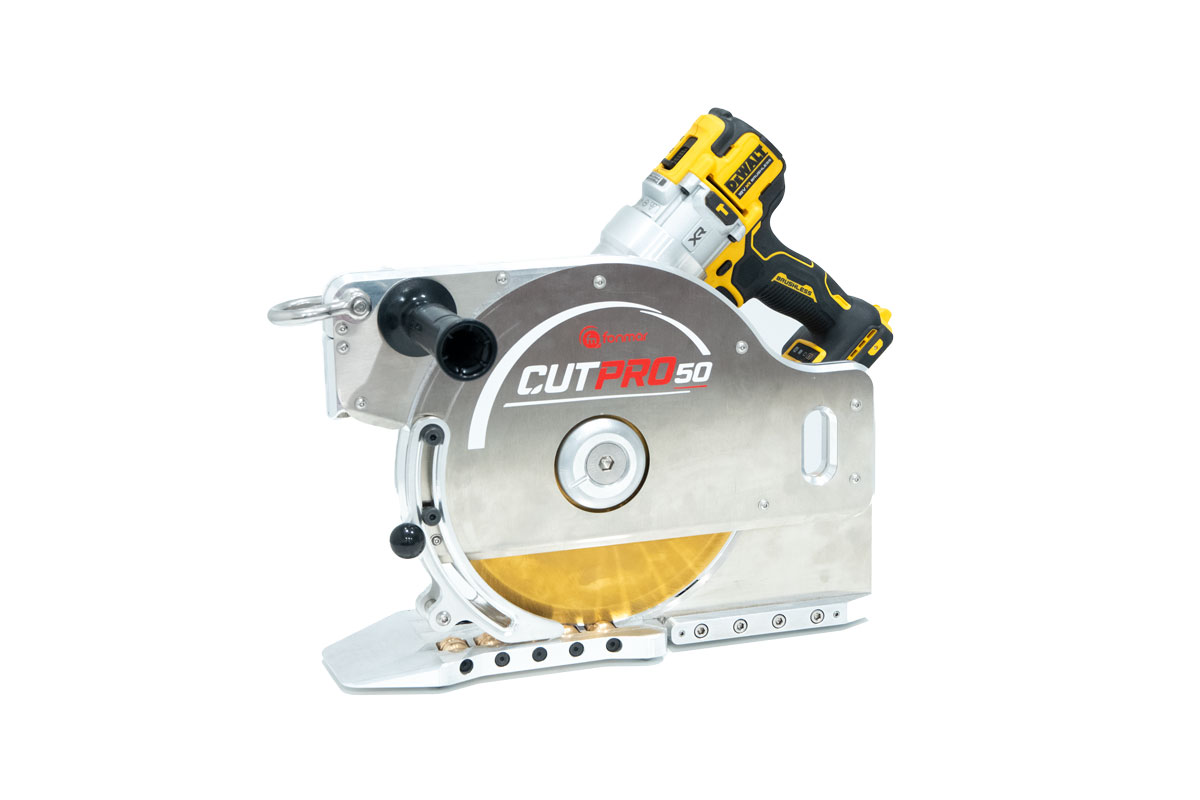

CutPro 50 Belt Cutter
CutPro 50 Belt Cutter
- - Bright LED head light that illuminates the work area.

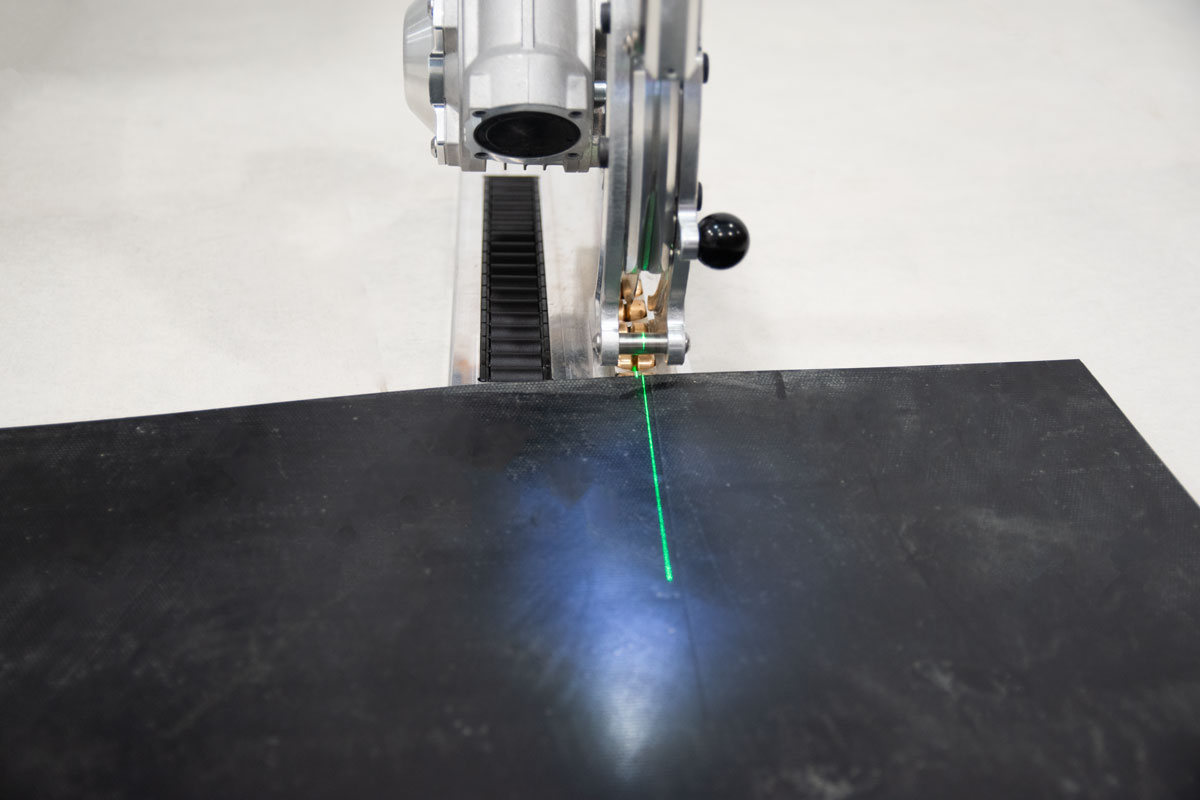

- - Fixed Green Laser guide light; shows up better on black conveyor belt than a red laser.
- - Protection system.
- - Unit can be reversed in a binding situation.
- - Wide base to stand on its own and can easily slides under the belt or fingers.
- - Balanced one-handed operation.
Request a Quote
| Model | A (mm) (in) | B (mm) (in) | C (mm) (in) | D (mm) (in) | Total weight (Kg) (Lb) |
|---|---|---|---|---|---|
| CutPro50 | 475 mm | 370 mm | 60 mm | 250 mm | 11,5 Kg |
The technical data shown are subject to change without notice.

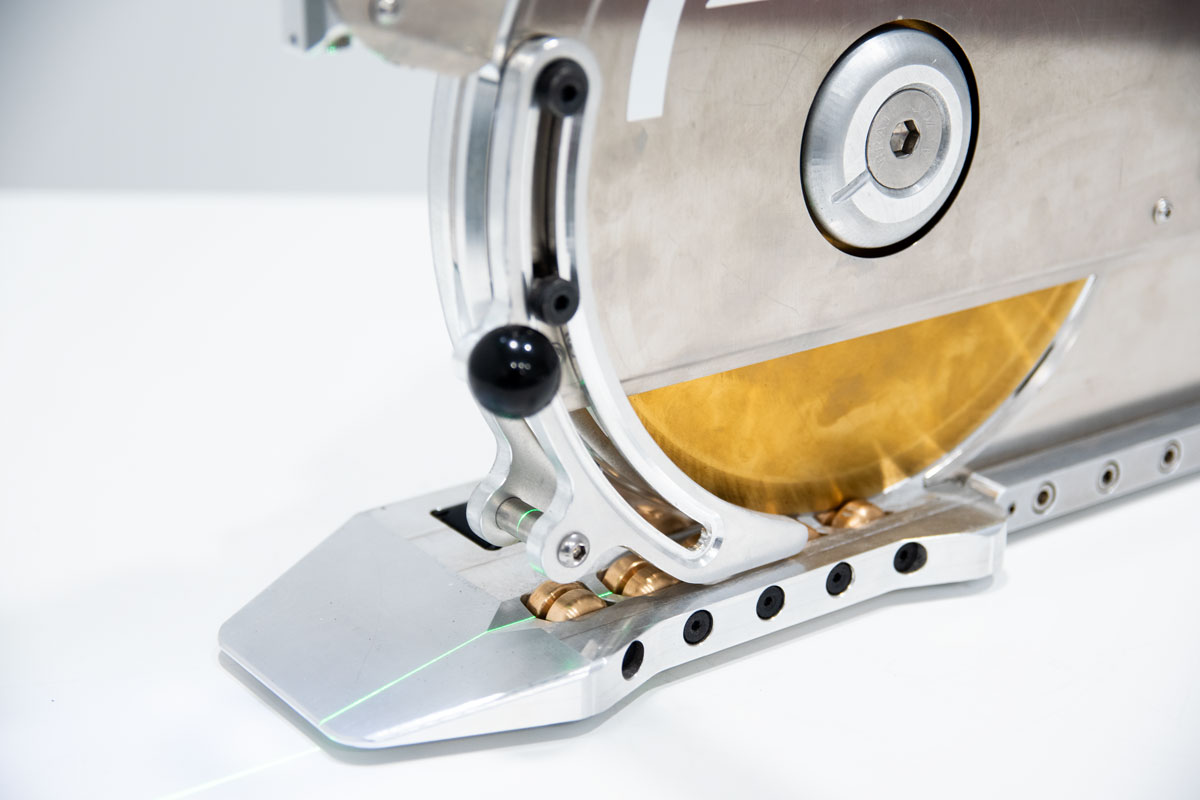

The Fonmar CutPro 50 belt cutter offers precision cutting for belts up to 51 mm (2') thick. The CutPro 50 is capable of cutting all types of EP belts thanks to its cutting disc made of AISI-D2 material, double-bevel sharpened and coated with titanium nitride to ensure non-stick performance.
The unit is powered by a drill delivering 169 Nm of torque through advanced brushless motor technology.
Its multidirectional sliding system allows easy orientation in any direction, making it ideal for finger cutting applications.
It also includes a sliding lock system, allowing much easier handling when reversing the disc rotation in case the belt gets jammed.
The laser guide and LED light enable accurate cutting even in low-light conditions.

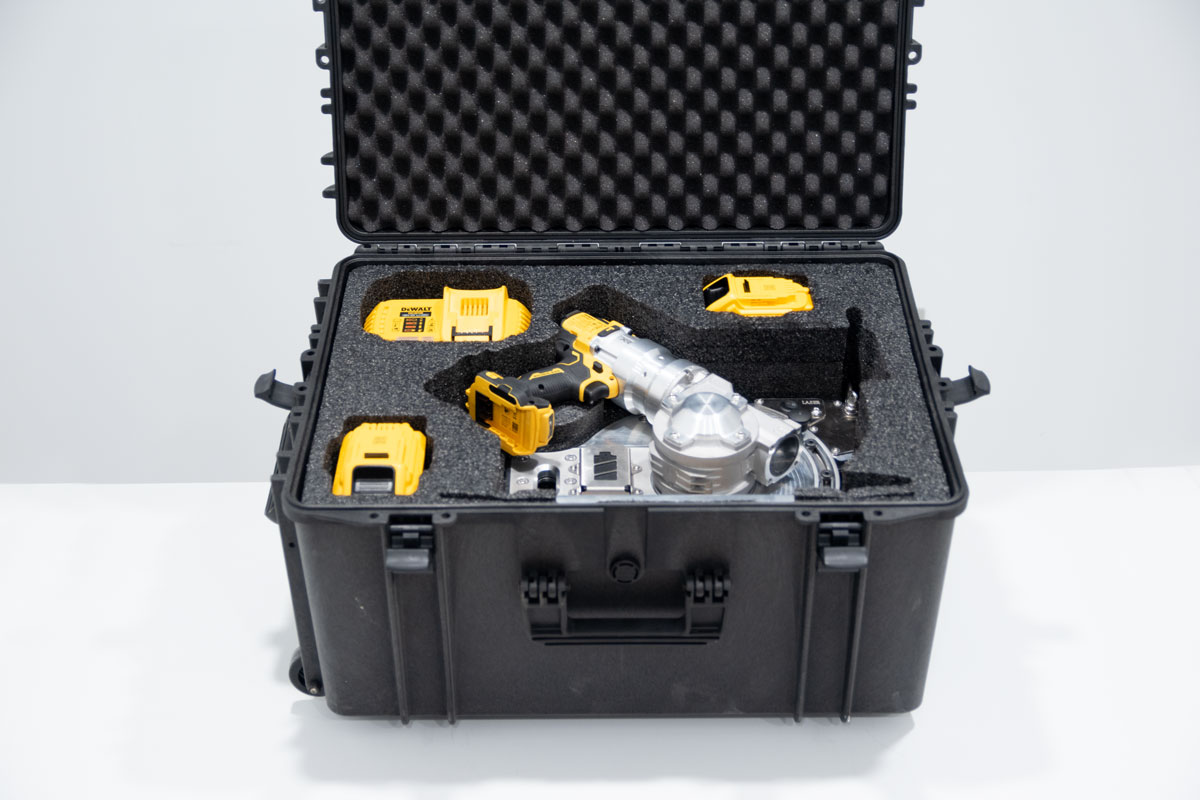

The kit includes:
- Carrying case
- Cordless belt cutter
- Charger
- Spare battery
- Spare cutting disc
Features:
- Lightweight aluminum construction, 12 kg without battery
- 229 mm (9') D2 material cutting disc
- Dimensions: Length 480 mm × Width 150 mm × Height 370 mm
- Carrying case dimensions: Length 680 mm × Width 530 mm × Height 380 mm
